Key Features
Individual Brew Tanks With PID Control
Consistent, reliable temperature ideal for high-volume beverage service
Push-Button Volumetric Output
Program up to four automated shot outputs per group
9-Bar Extraction With Pre-Wet
Program a 0-4 second Pre-Wet phase and Pause phase before full extraction

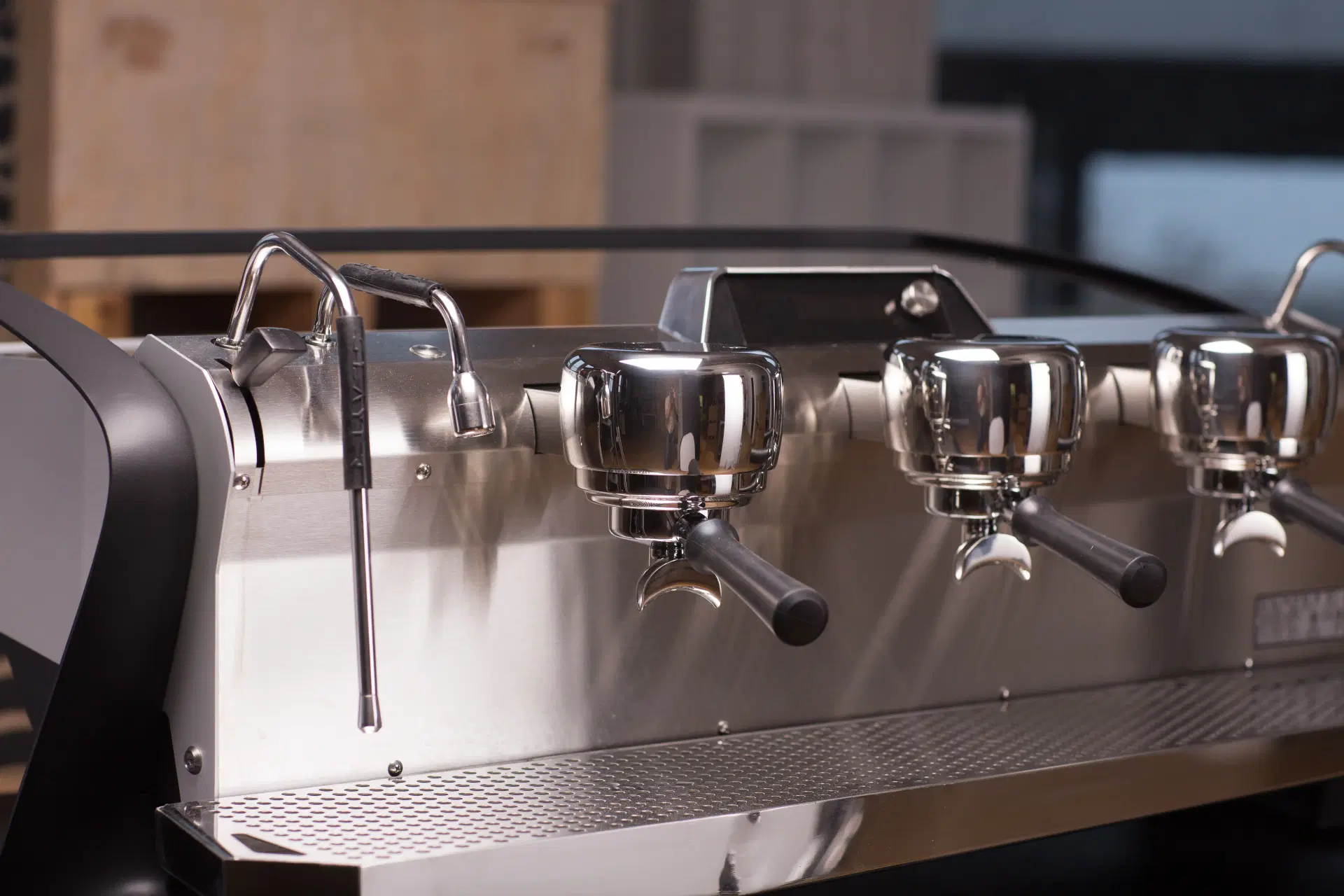

Steam Wands Feature Electronic Valves
Reliable, low maintenance valves don’t need rebuilding like mechanical valves

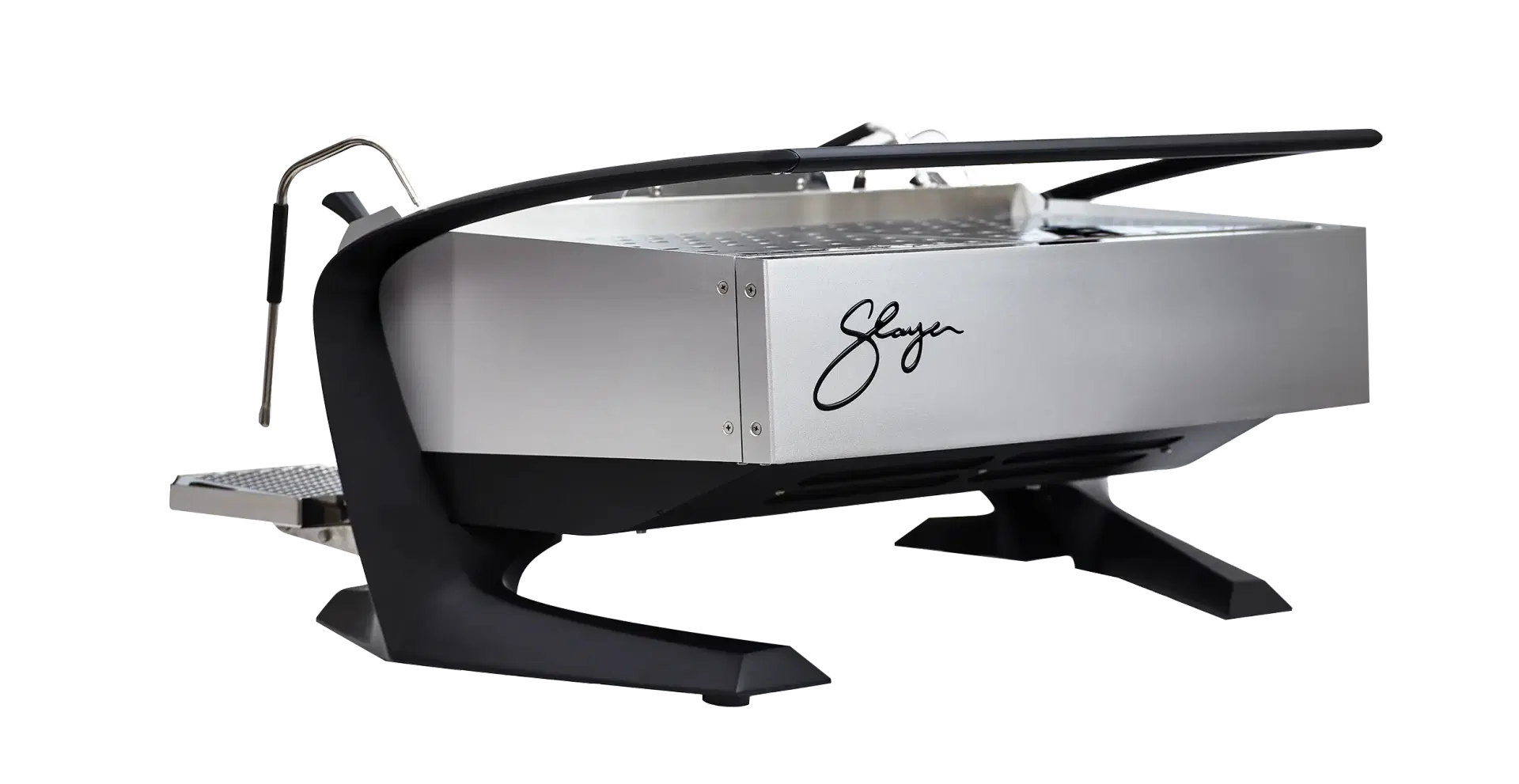

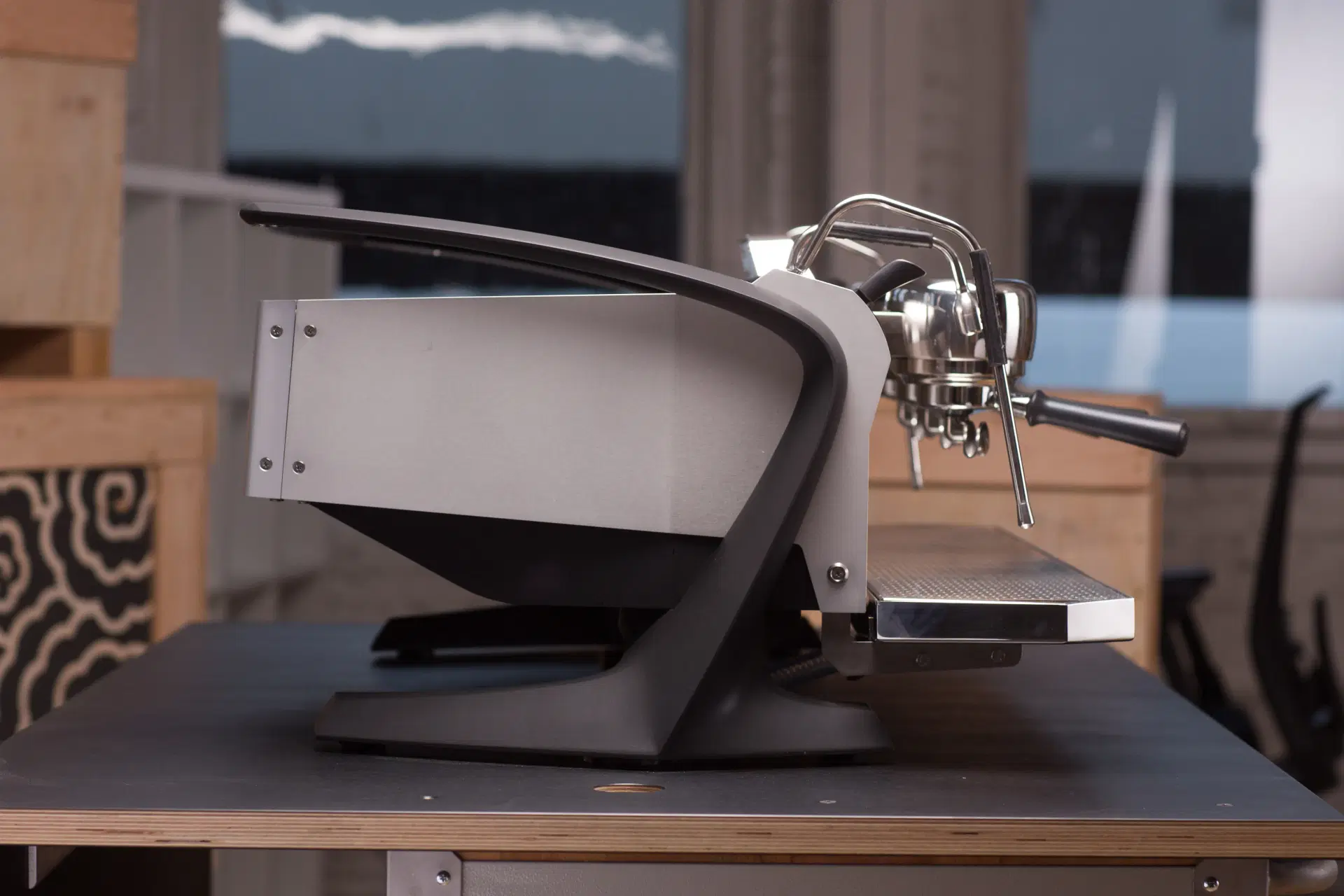

Clean Installation
Cantilevered ‘Wings’ support the machine and also hide unsightly power and drain cables for a clean installation

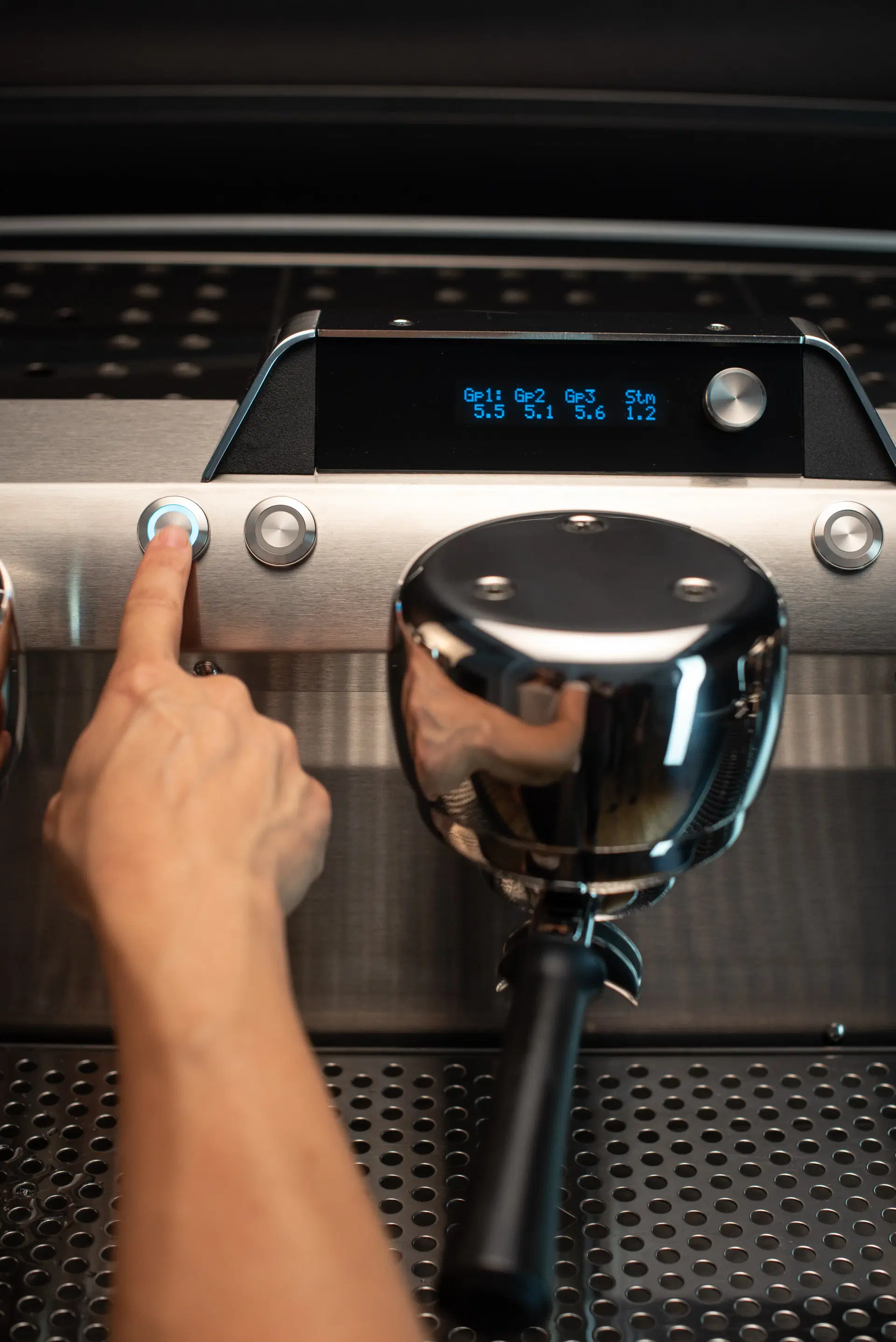

Centralized Heads-Up Barista Dashboard
Easy to operate, program and fine tune your machine from a single screen

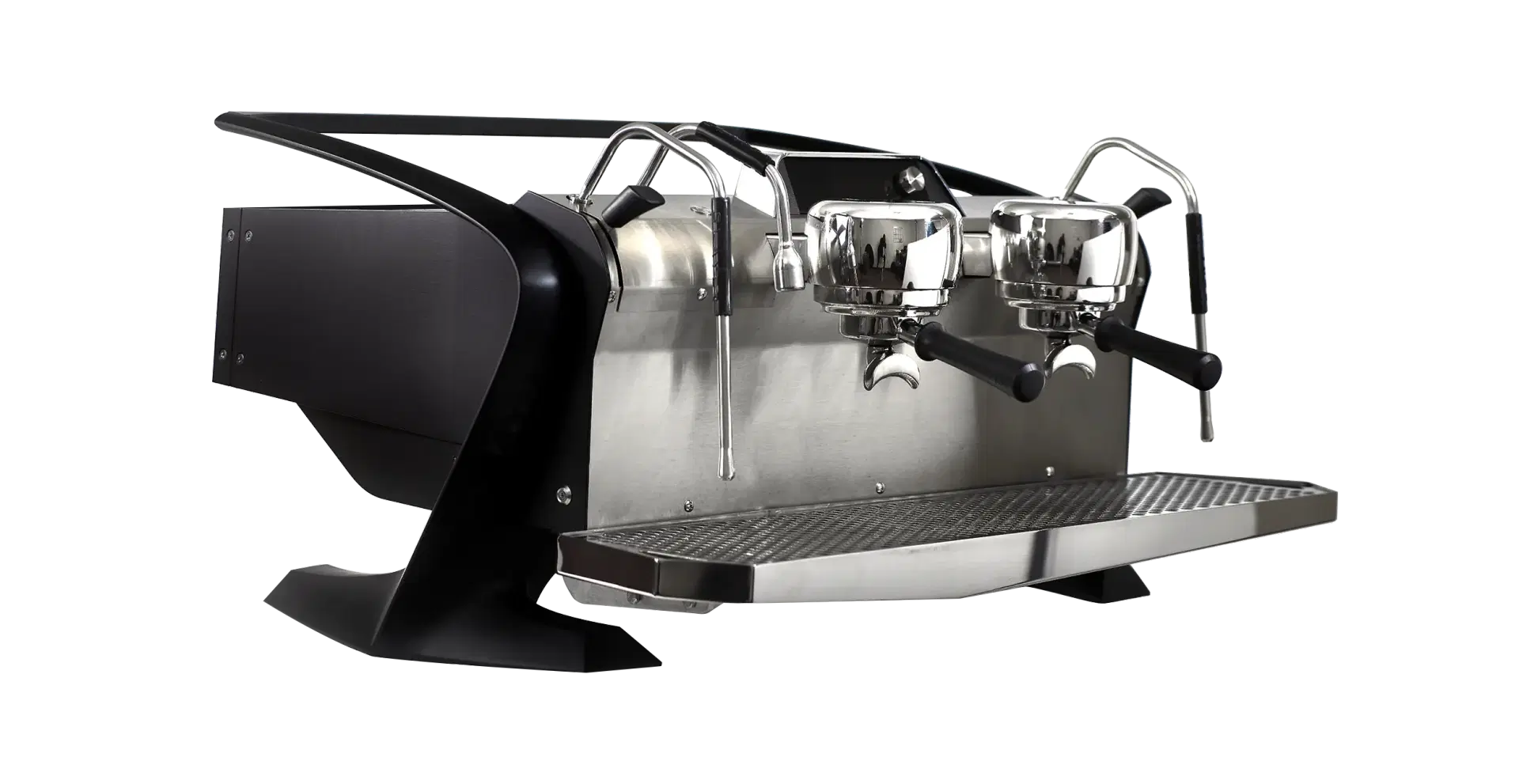

Unique Design
Low-profile, large drip tray and ergonomic functions allow baristas to easily speak with guests
Product Specifications
2-Group
3-Group
Width
35 in / 89 cm
44.5 in / 113 cm
Depth
28 in / 71 cm
28 in / 71 cm
Height
17 in / 43.2 cm
17 in / 43.2 cm
Weight
220 lb / 100 kg
305 lb / 139 kg
Brew Tanks
1.7 L, 600 W (x2)
1.7 L, 600 W (x3)
Steam Tank
7.4 L / 3,500 W
12 L / 4500 W
Single-Phase
220—240V; 50/60Hz;
21—23A; 4.7—5.6kW
220—240V; 50/60Hz;
29—32A; 6.3—7.6kW
Three-Phase
380—415V; 50/60Hz;
13—14A; 4.9—5.7kW
380—415V; 50/60Hz;
15—16A; 5.8—6.5kW
Measurements do not include overhanging components: portafilters, brew actuators, cup rails

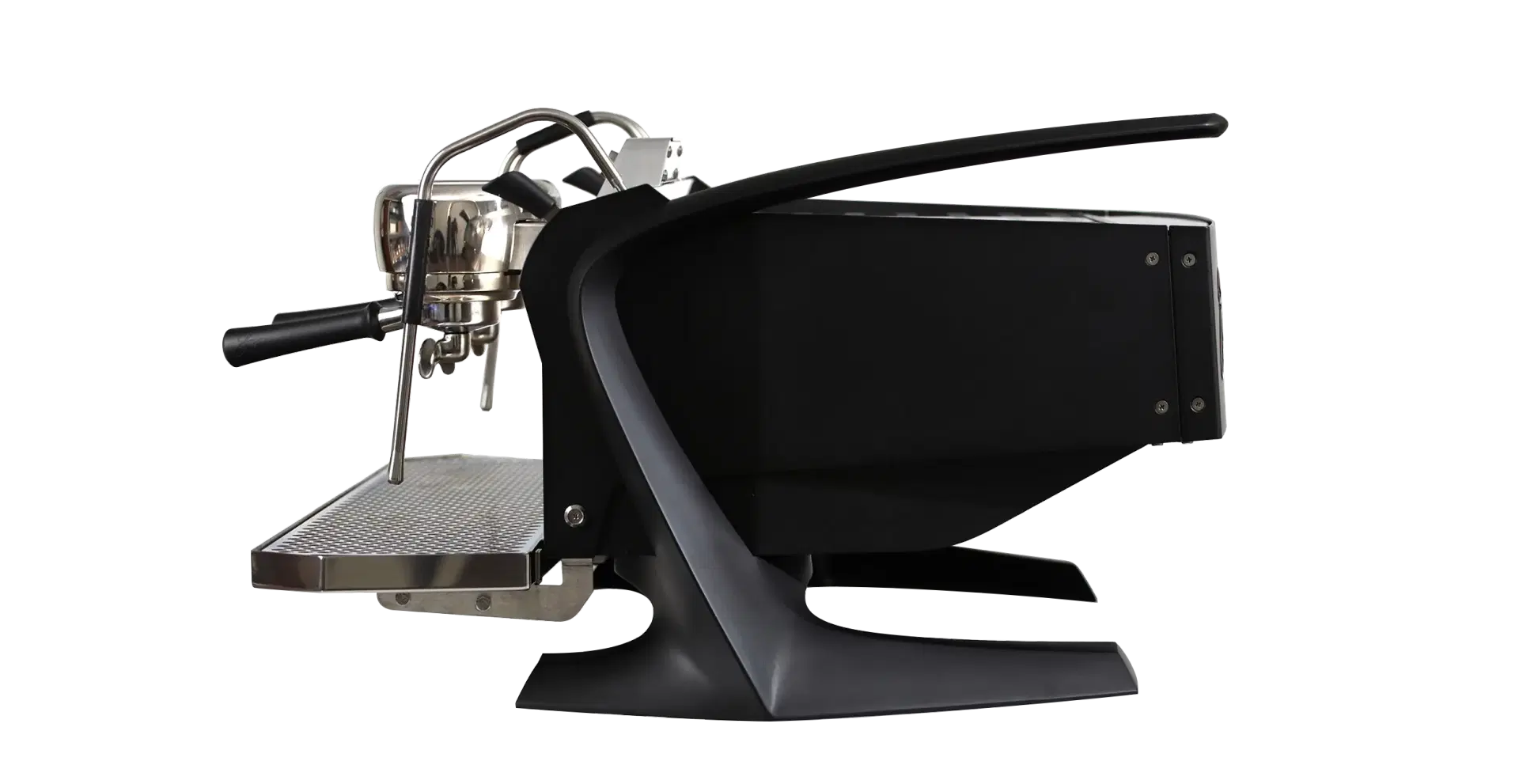

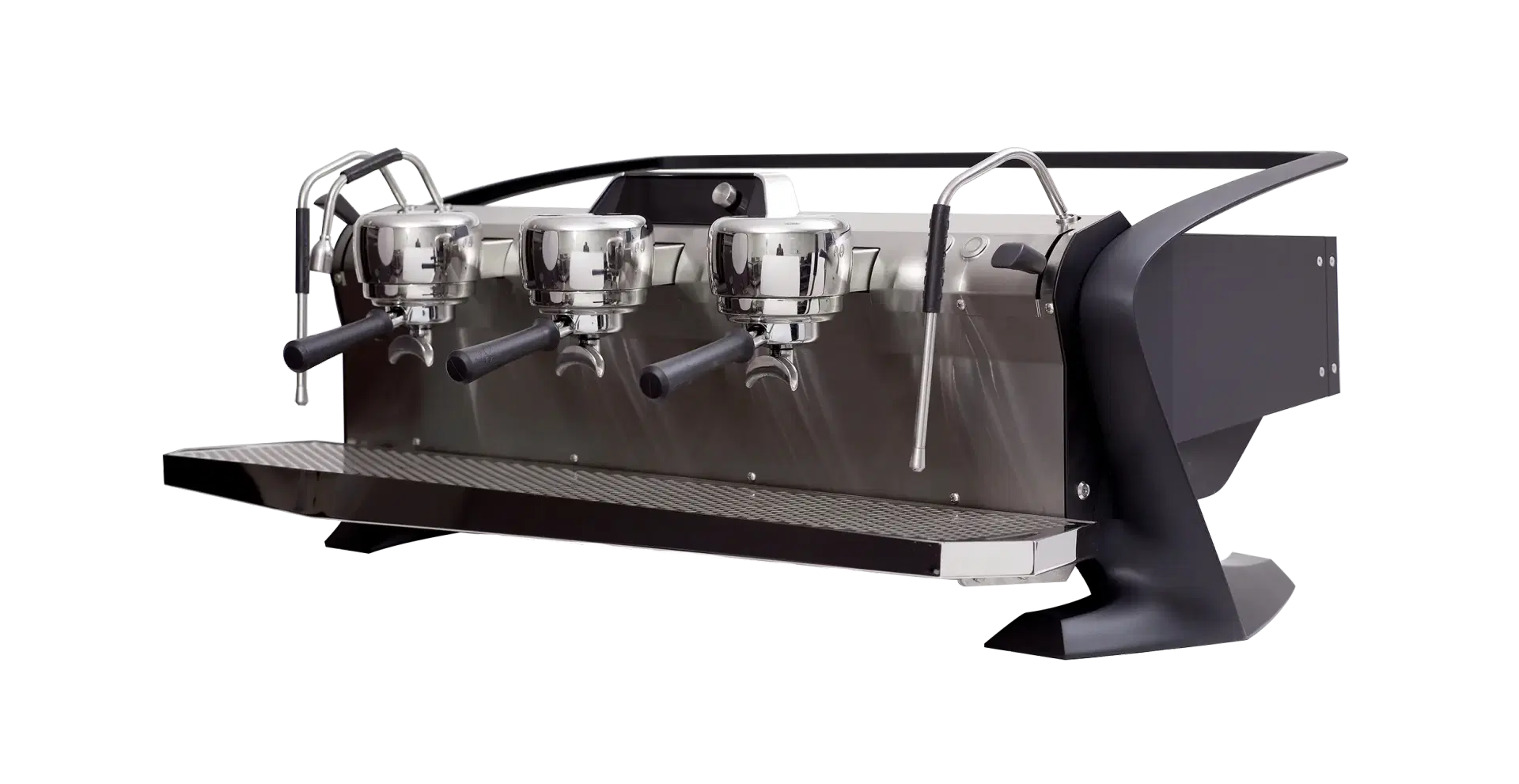

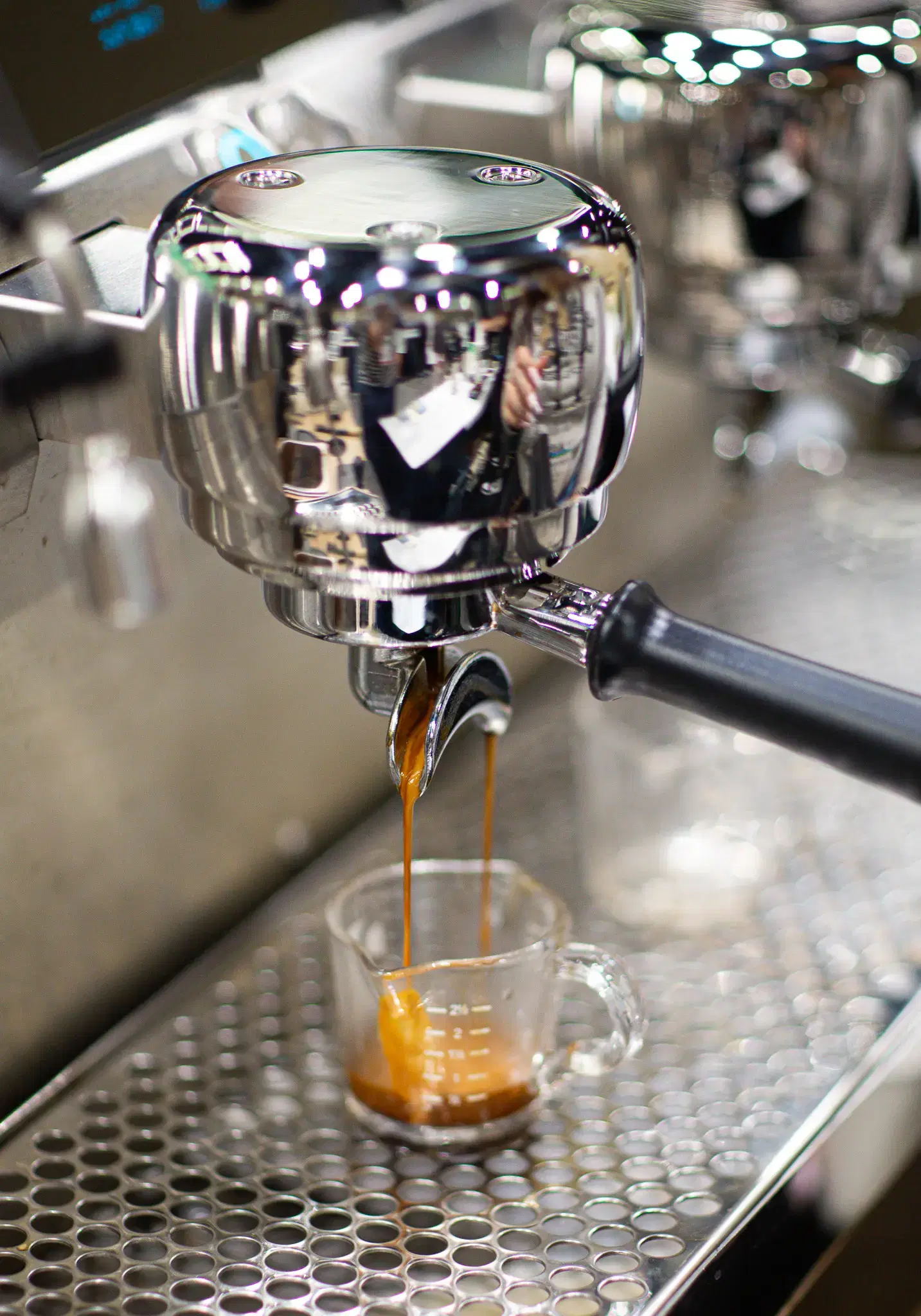

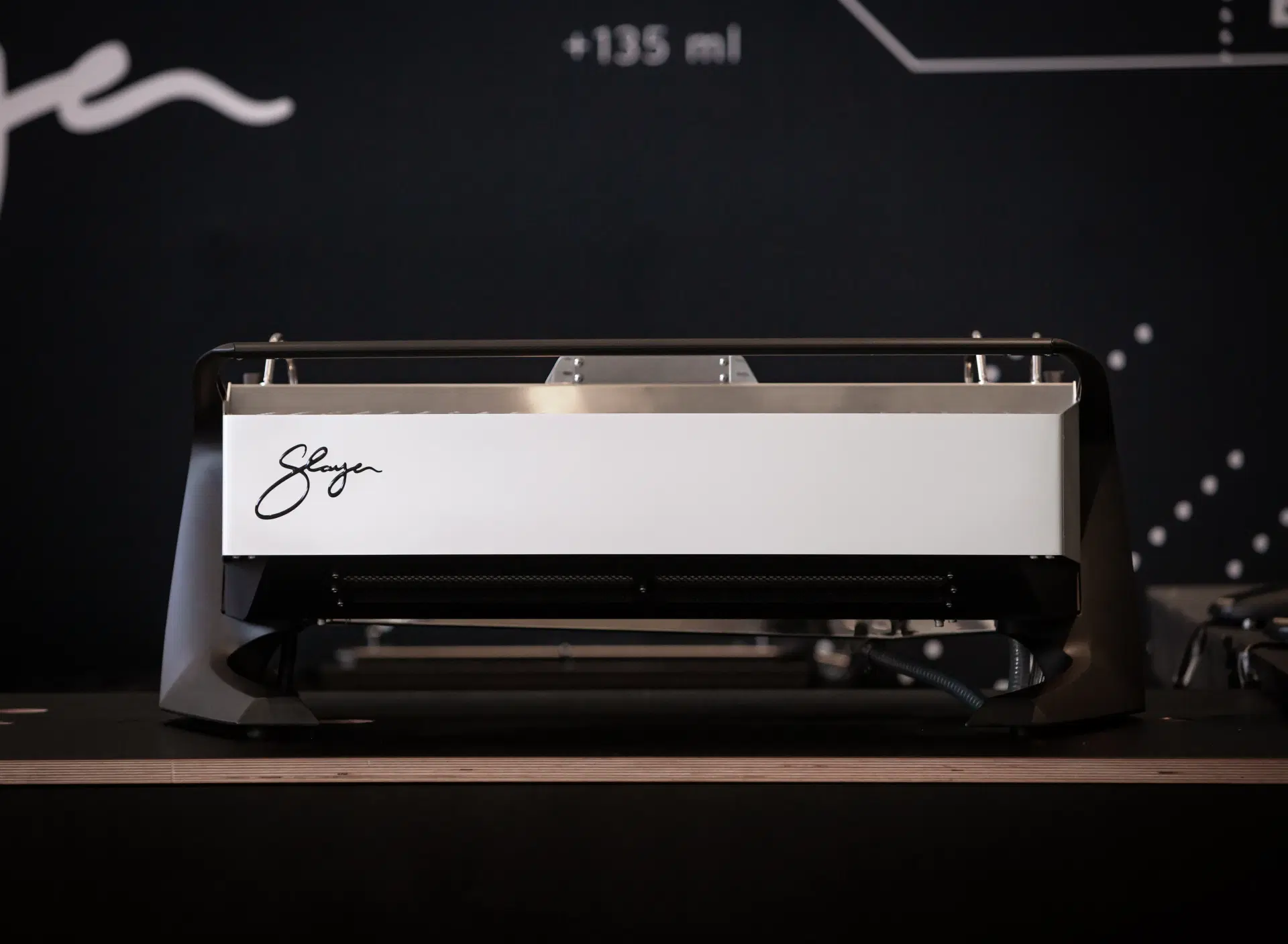

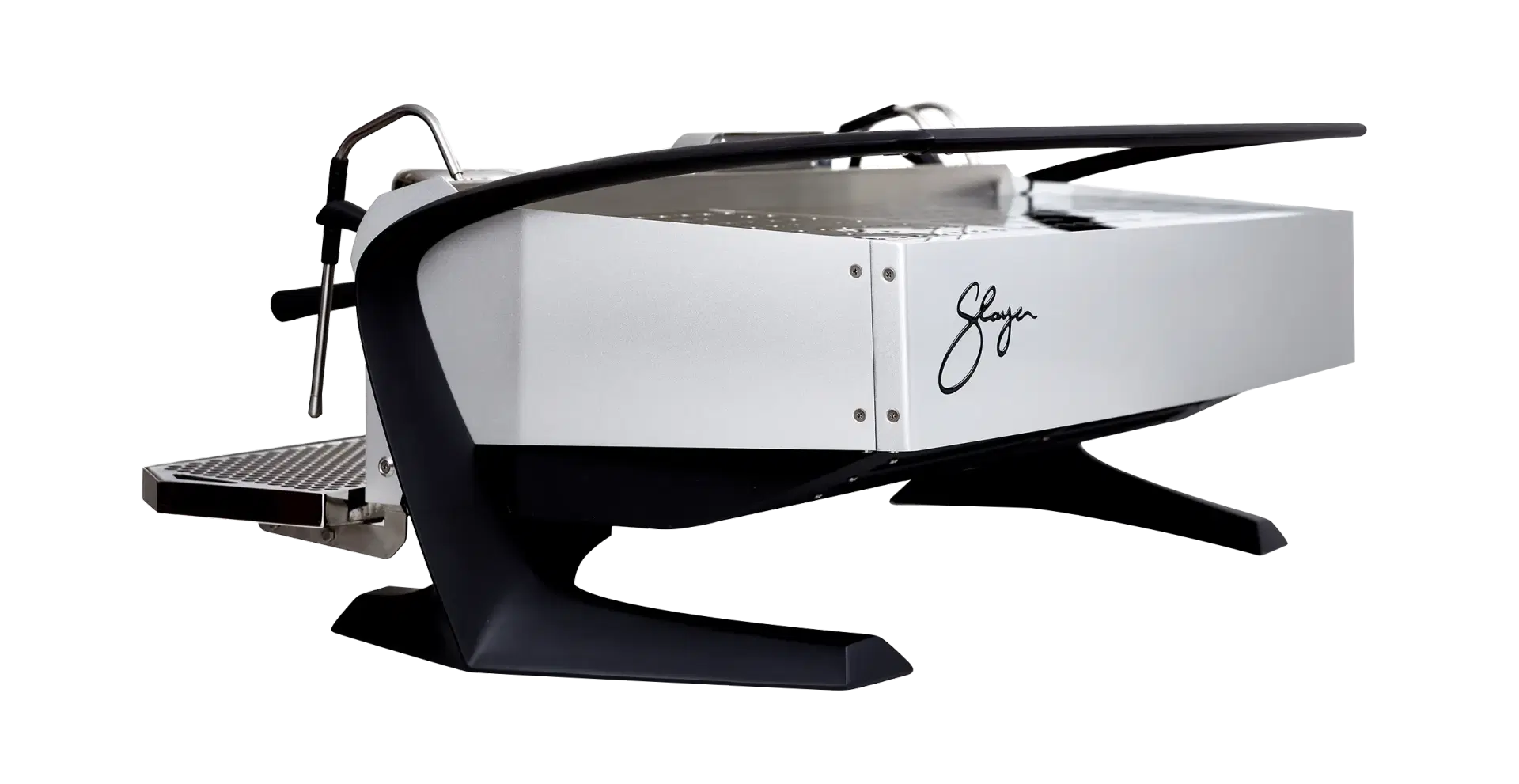

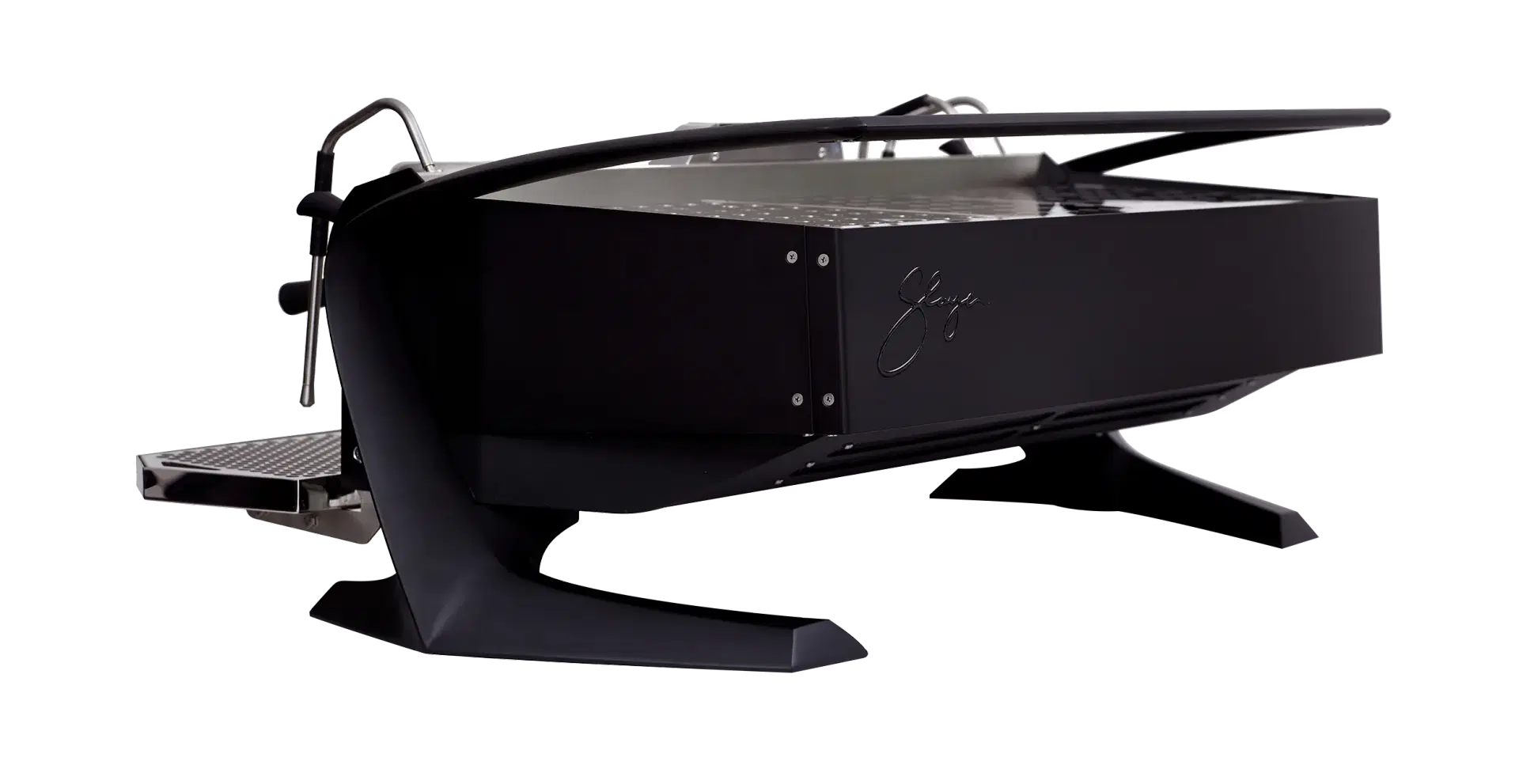

Gallery
