The all-rounder: flavor profiling

STEAM LP

Starting at HK$ 130,000

Key Features

Variable Pressure

Manually shift between a regulated low-pressure and a traditional pump-pressure easily with the brew actuator

Intuitive Volumetric Interface

Quickly and easily “record” your last manual shot and “replay” it all day

Quick Calibration

Scroll and adjust values to make small changes or set up the full brew recipe

Barista Dashboard Per Group

Easy to operate, program and fine tune your machine from individual screens per grouphead

Individual Brew Tanks With PID Control

Dedicated tanks at each group and a dedicated tank for steam to maintain optimum temperature stability

Clean Installation

Cantilevered ‘Wings’ support the machine and also hide unsightly power and drain cables for a clean installation

Steam Wands Feature Electronic Valves

Reliable, low maintenance valves don’t need rebuilding like mechanical valves

Big Adjustable Drip Tray

Easily stage drinks with a massive workspace on an adjustable height drip tray

Product Specifications

blue-print
2-Group
3-Group
Width
35 in / 89 cm
44.5 in / 113 cm
Depth
28 in / 71 cm
28 in / 71 cm
Height
17 in / 43.2 cm
17 in / 43.2 cm
Weight
220 lb / 100 kg
305 lb / 139 kg
Brew Tanks
1.7 L, 600 W (x2)
1.7 L, 600 W (x3)
Steam Tank
7.4 L / 3,500 W
12 L / 4500 W
Single-Phase
220—240V; 50/60Hz; 21—23A; 4.7—5.6kW
220—240V; 50/60Hz; 29—32A; 6.3—7.6kW
Three-Phase
380—415V; 50/60Hz; 13—14A; 4.9—5.7kW
380—415V; 50/60Hz; 15—16A; 5.8—6.5kW

Measurements do not include overhanging components: portafilters, brew actuators, cup rails

Gallery

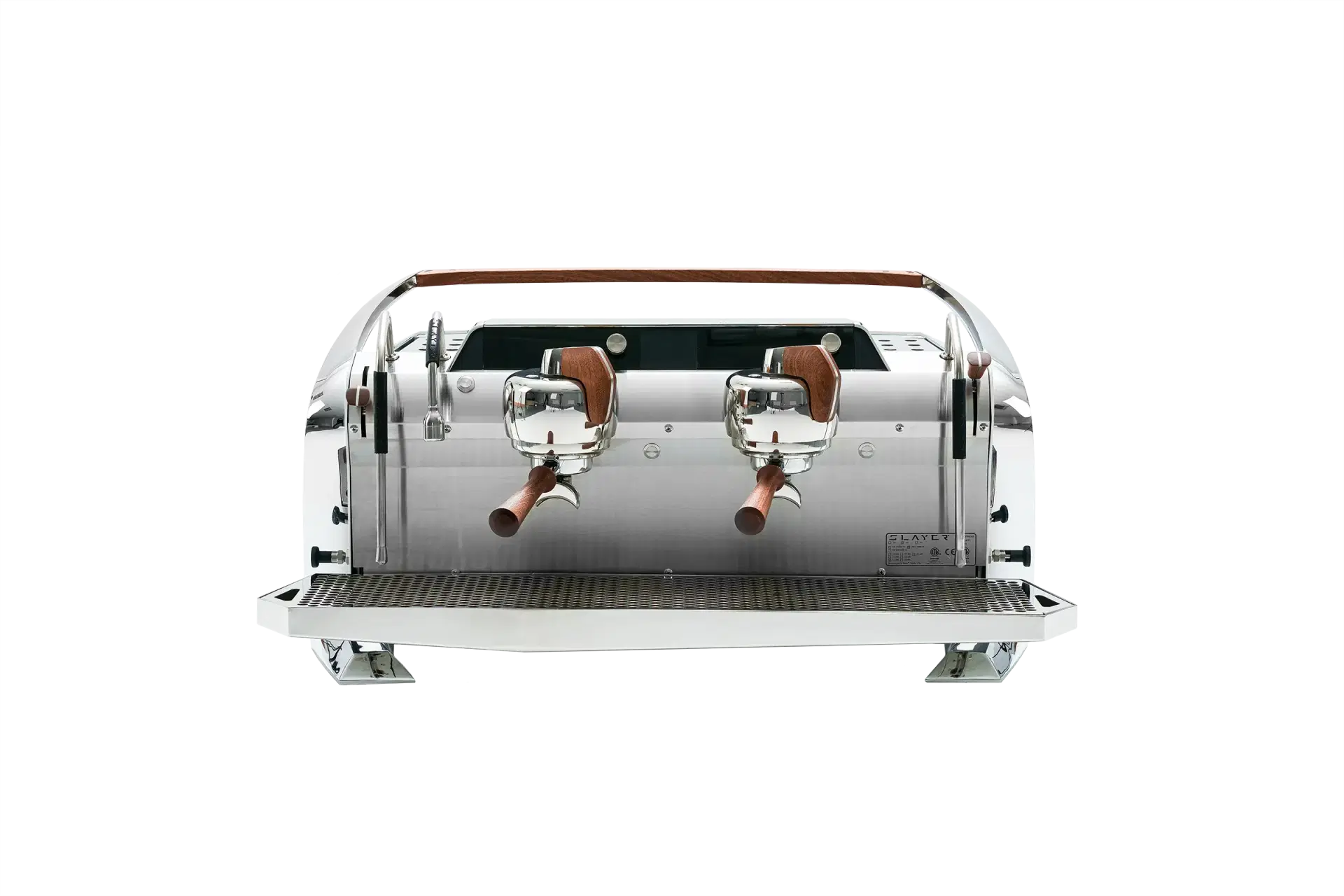

gallery_0_0
gallery_0_1
gallery_0_2

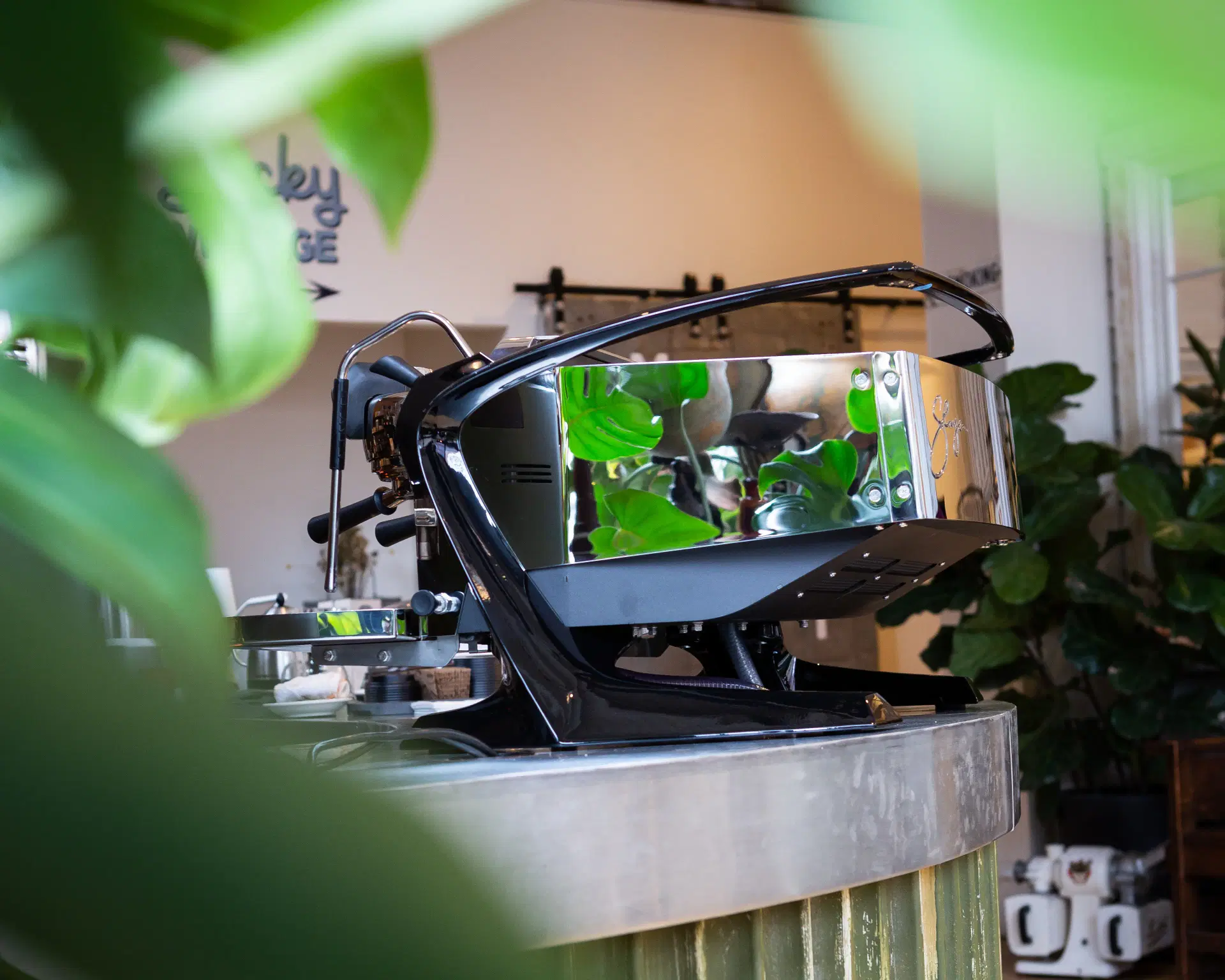

gallery_0_3
gallery_0_4

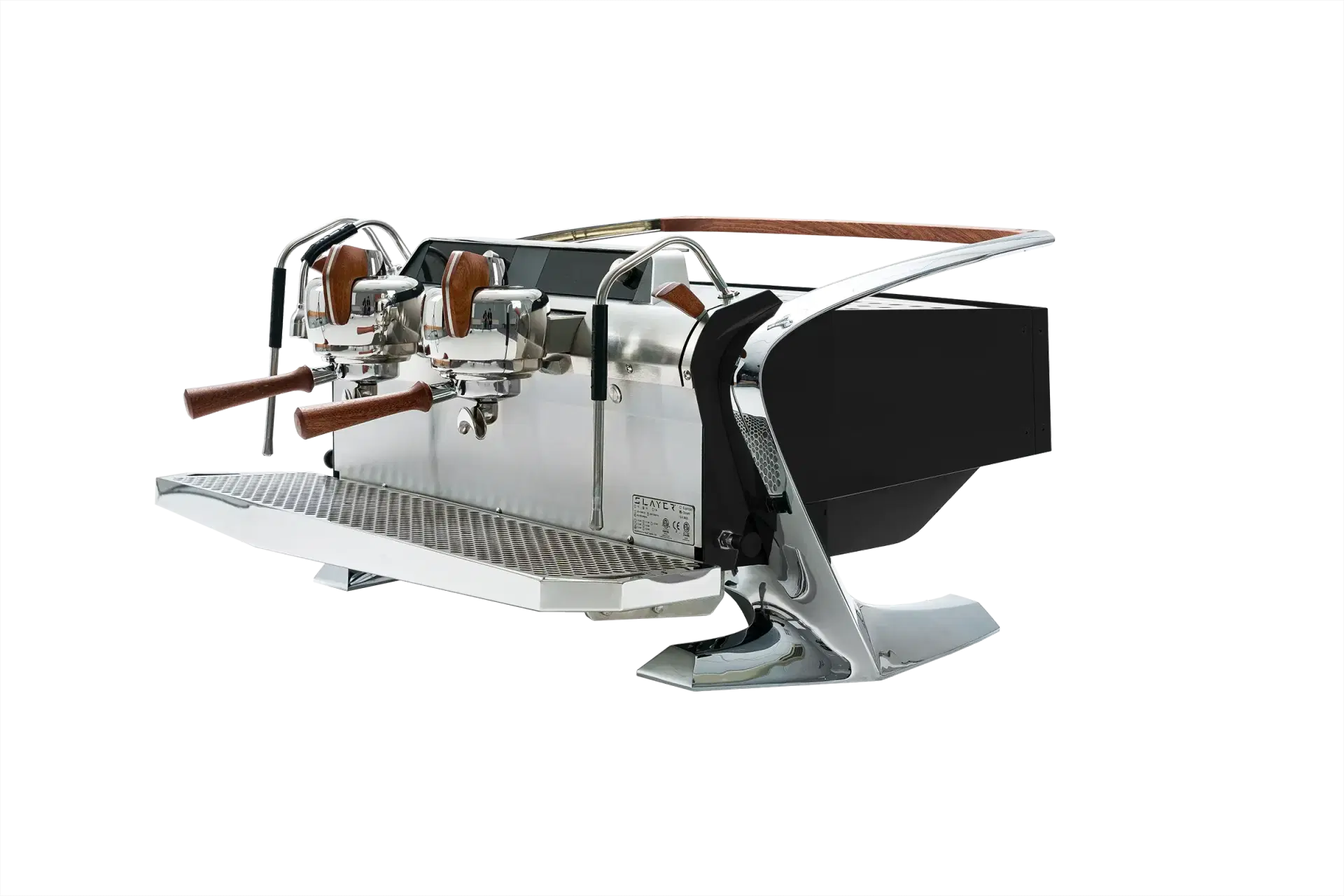

gallery_1_0

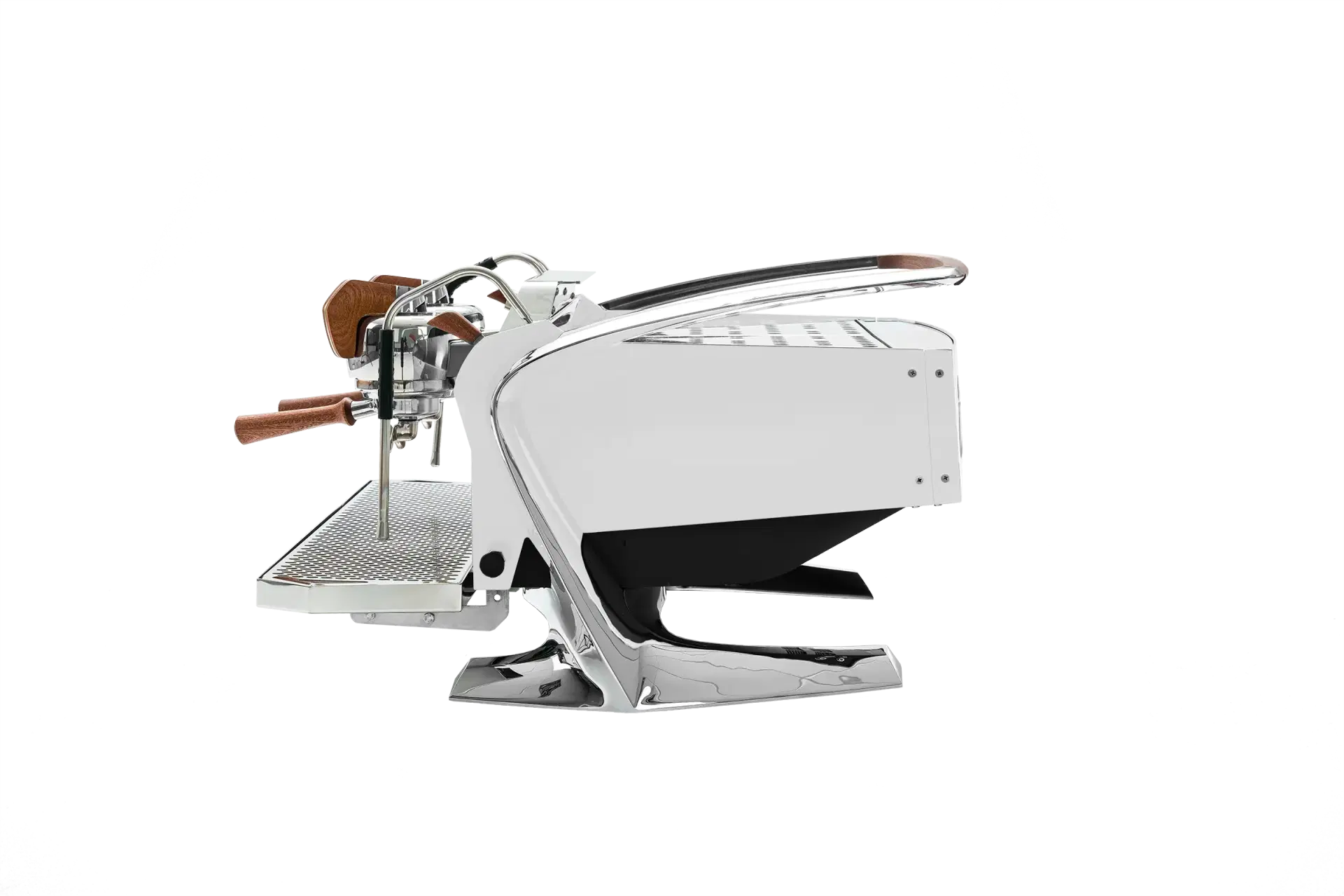

gallery_1_1

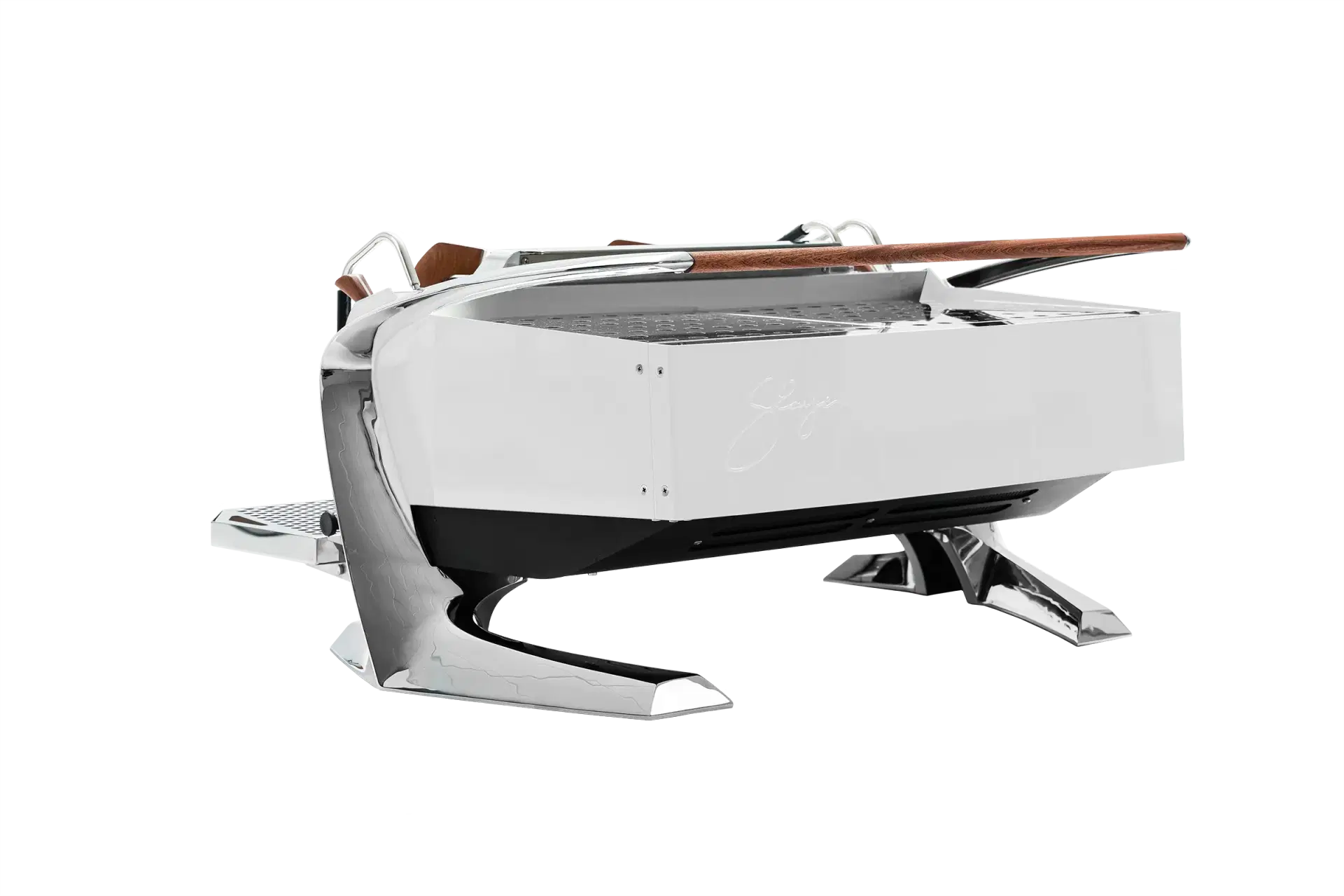

gallery_1_2
gallery_1_3
gallery_1_4
gallery_2_0
gallery_2_1

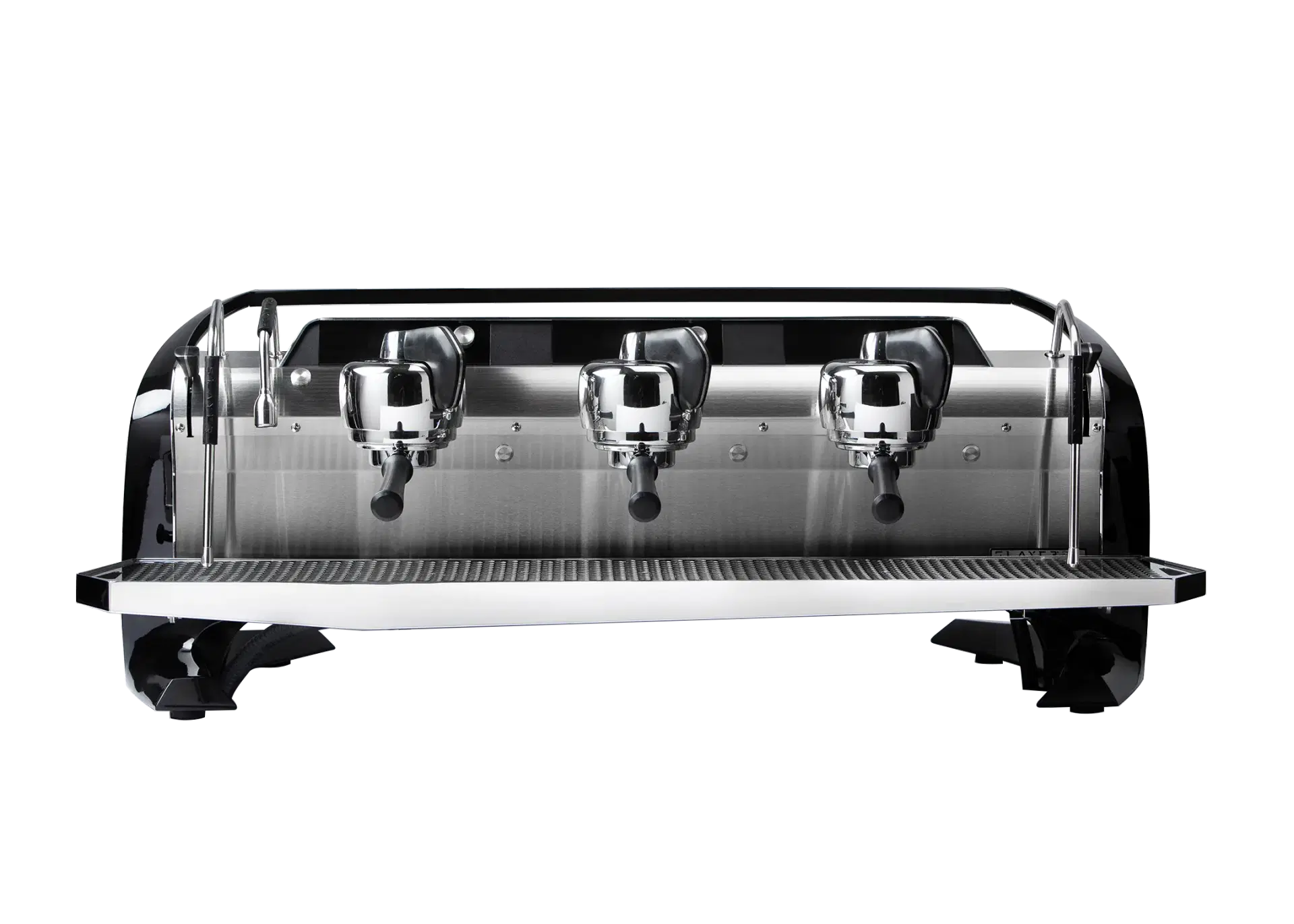

gallery_2_2

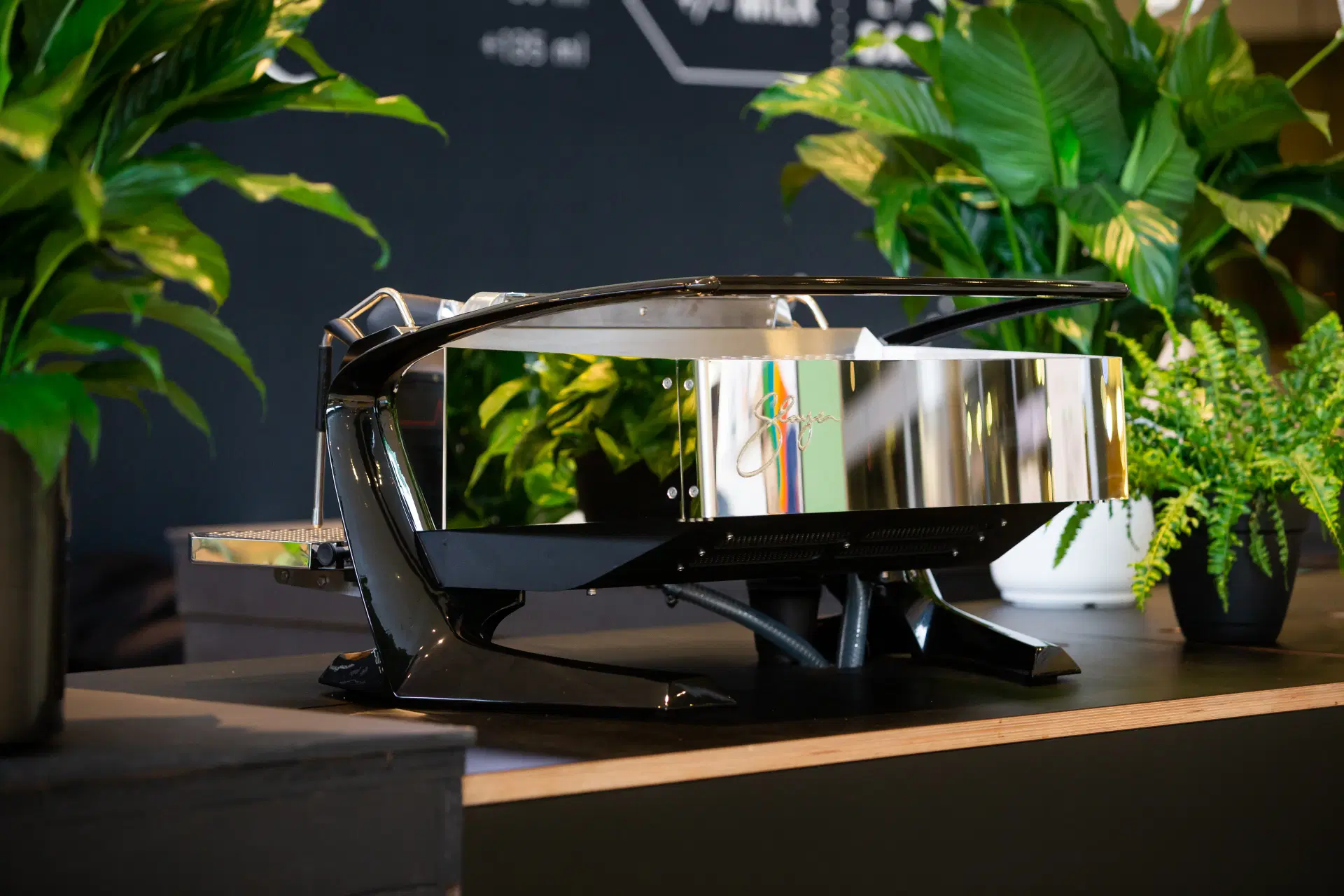

gallery_2_3

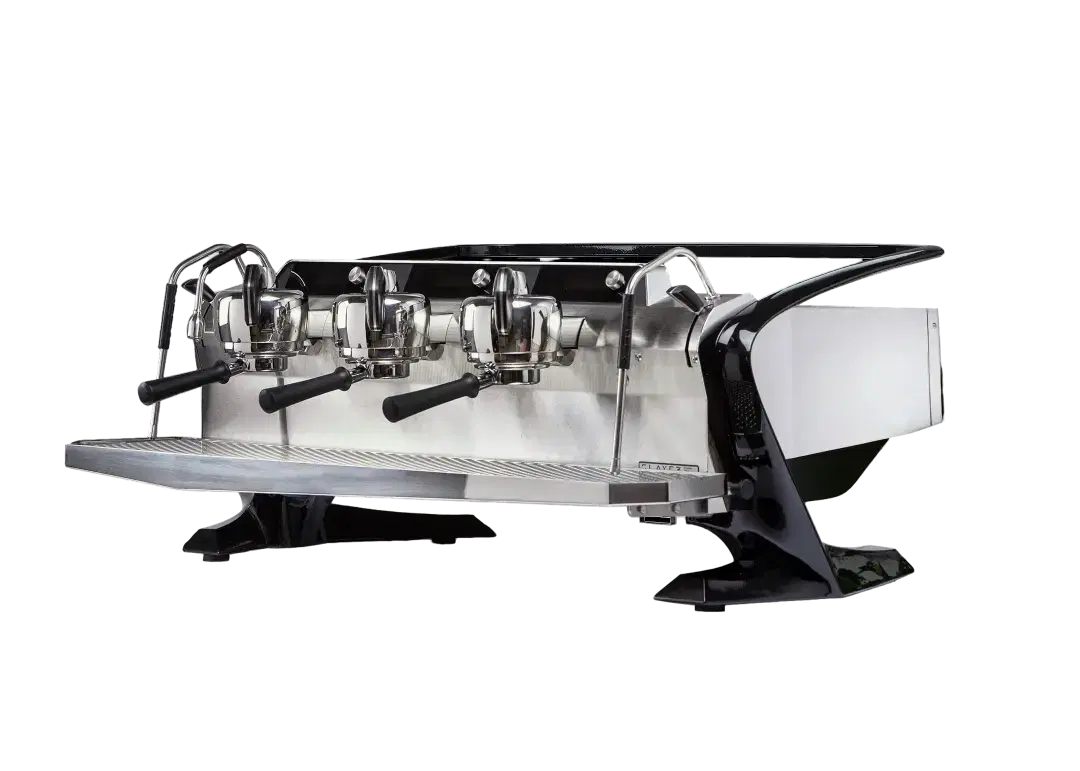

gallery_3_0

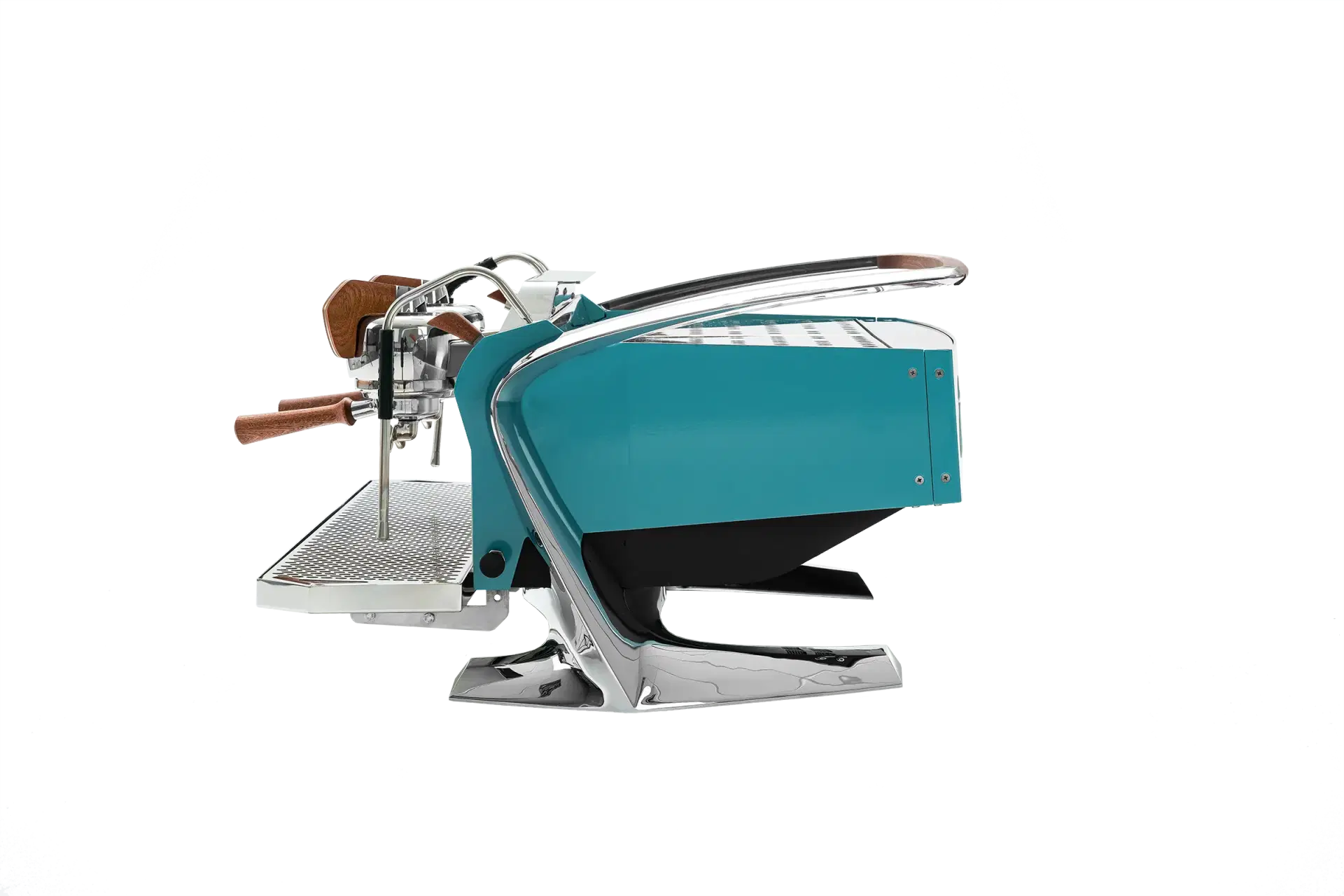

gallery_3_1
gallery_3_2

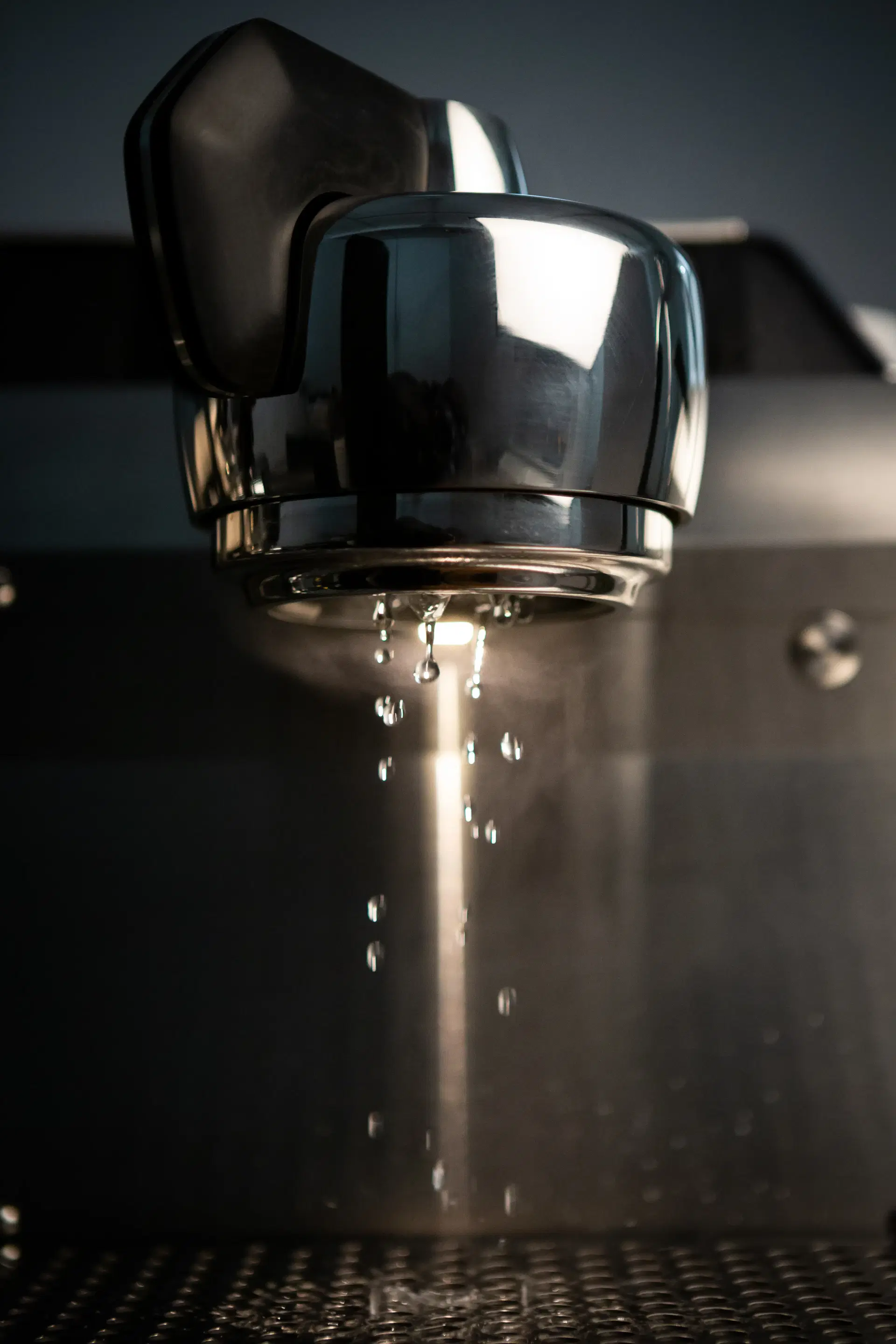

gallery_3_3
